Halo

This example demonstrates how to use the pylops_mpi.basicoperators.MPIHalo operator.

This operator is specifically designed to extend pylops-mpi’s capabilities in terms of chunking of N-dimensional distributed arrays when solving inverse problems with pylops-mpi’s operators and solvers. As a matter of fact, whilst pylops_mpi.DistributedArray allows one to create N-dimensional array distributed over a given axis (defined via the axis paramater), only 1-dimensional distributed arrays can be used with pylops-mpi’s operators and solvers.

Moreover, several operators require accessing neighbouring values, which for values at the edges of a local array belong to neighouring ranks. The process of obtaining ghost cells (or halos) from neighouring ranks is implemented in the add_ghost_cells method of the pylops_mpi.DistributedArray class; however, once again as the chunking is so far limited to only one axis, also haloing happens in a single dimension.

The pylops_mpi.basicoperators.MPIHalo operator allows to internally convert a 1-dimensional distributed array into a N-dimensional distributed array (whilst never physically changing the actual shape of local arrays) and extracting a number of user-defined ghost cells over all axes. Moreover, even for the case when we are interested to chunk the distributed array over a single axis, having an operator that can be chained to any other pre-existent operator may open doors to an easier implementation of new operators compared to having access to add_ghost_cells method to be used directly in the matvec/rmatvec implementation of an operator.

from matplotlib import pyplot as plt

import sys
import math
import time
import numpy as np
import pylops

from pylops.utils.wavelets import ricker
from pylops_mpi.basicoperators.Halo import MPIHalo, halo_block_split
from mpi4py import MPI
from scipy.signal.windows import gaussian

import pylops_mpi

plt.close("all")
np.random.seed(42)

comm = MPI.COMM_WORLD
rank = comm.Get_rank()
size = comm.Get_size()

def pause(comm, t=4):
    sys.stdout.flush()
    comm.barrier()
    time.sleep(t)

def local_extent_from_slice(local_shape, local_slice, halo):
    lefts = []
    rights = []
    if isinstance(halo, int):
        for sl in local_slice:
            lefts.append(halo if (sl.start or 0) > 0 else 0)
            rights.append(halo if sl.stop is not None else 0)
    else:
        for sl, hal in zip(local_slice, halo):
            lefts.append(hal if (sl.start or 0) > 0 else 0)
            rights.append(hal if sl.stop is not None else 0)
    extent = tuple(dim + l + r for dim, l, r in zip(local_shape, lefts, rights))
    return extent, lefts, rights

Let’s start by considering a 1-dimensional distributed array. We are interested to compute a first derivative: however, because we are required to use a stencil of size >=2, at the edges of the local arrays we are required to borrow cells from neighbouring ranks. As already mentioned, the pylops_mpi.basicoperators.MPIFirstDerivative operator does that under the hood using the add_ghost_cells method of the pylops_mpi.DistributedArray class; however, we will see how we can now achieve the same without having to re-implement the derivative operator in pylops-mpi. Instead, we will simply combine the pylops.FirstDerivative operator with the pylops_mpi.basicoperators.MPIBlockDiag and pylops_mpi.basicoperators.MPIHalo operators.

To begin with, let’s however simply create and apply a pylops_mpi.basicoperators.MPIHalo operator with a halo of 1 (apart from the edges of the global array, where no halo is added)

# Halo operator
nlocal = 64
n = nlocal * size
proc_grid_shape = (size, )  # number of partitions over each axis

halo = 1 if size > 1 else 0  # for Sphinx-gallery as it runs with 1 rank
halo_op = MPIHalo(
    dims=(n, ),
    halo=halo,
    proc_grid_shape=proc_grid_shape,
    comm=comm
)

# Global array
x = np.arange(n).astype(np.float64)

# Distributed array
x_dist = pylops_mpi.DistributedArray(
    global_shape=n,
    base_comm=comm,
    partition=pylops_mpi.Partition.SCATTER)
x_slice = halo_block_split((n, ), comm, proc_grid_shape)
x_local = x[x_slice]
x_dist.local_array[:] = x_local

# Apply halo
x_dist_halo = halo_op @ x_dist

if rank == 0:
    print('1D Halo with halo=1')
pause(comm, t=1)
print(f"Rank {rank} - shape before/after haloing: {x_dist.local_array.size}"
      f"/{x_dist_halo.local_array.size}")

1D Halo with halo=1
Rank 0 - shape before/after haloing: 64/64

Let’s now instead compute the derivative and compare it with the result of the pylops_mpi.basicoperators.MPIFirstDerivative operator.

# Derivative operator (using Halo)
if size == 1:
    local_shape_with_halo = x_local.size  # for Sphinx-gallery
else:
    if rank == 0 or rank == size - 1:
        local_shape_with_halo = (x_local.size + 1, )
    else:
        local_shape_with_halo = (x_local.size + 2, )
DOp = pylops.FirstDerivative(dims=local_shape_with_halo, axis=0)
DOp_dist = pylops_mpi.MPIBlockDiag([DOp, ])
Op_dist = halo_op.H @ DOp_dist @ halo_op

y_dist = Op_dist @ x_dist

# Derivative operator (original)
DOp1_dist = pylops_mpi.MPIFirstDerivative(dims=n)

y1_dist = DOp1_dist @ x_dist

assert np.allclose(
    y_dist.local_array,
    y1_dist.local_array)

So good so far, we can reproduce a 2-nd order, centered first derivative by combining basic pylops and pylops-mpi operators. Let’s see if we can do the same with a 5-th order derivative that requires having an halo of 2.

pause(comm, t=1)

halo = 2 if size > 1 else 0  # for Sphinx-gallery as it runs with 1 rank
halo_op = MPIHalo(
    dims=(n, ),
    halo=halo,
    proc_grid_shape=proc_grid_shape,
    comm=comm
)

# Apply halo
x_dist_halo = halo_op @ x_dist

if rank == 0:
    print('1D Halo with halo=2')
pause(comm, t=1)
print(f"Rank {rank} - shape before/after haloing: {x_dist.local_array.size}"
      f"/{x_dist_halo.local_array.size}")

# Derivative operator (using Halo)
DOp = pylops.FirstDerivative(dims=x_dist_halo.local_array.size, axis=0, order=5)
DOp_dist = pylops_mpi.MPIBlockDiag([DOp, ])
Op_dist = halo_op.H @ DOp_dist @ halo_op

y_dist = Op_dist @ x_dist

# Derivative operator (original)
DOp1_dist = pylops_mpi.MPIFirstDerivative(dims=n, order=5)

y1_dist = DOp1_dist @ x_dist

assert np.allclose(
    y_dist.local_array,
    y1_dist.local_array)

1D Halo with halo=2
Rank 0 - shape before/after haloing: 64/64

Let’s move to something a bit more complicated. We assume to have a 2-dimensional array that is chunked over both axes. Note that since we partition the array over both axes, the number of ranks must be a power of 2 of an integer number. First, we simply want to multiply each element by a scalar; whilst this does not really require an halo, we will see how we can create local pylops.basicoperators.Diagonal operators of the correct size.

# Input and halo partition
dims = (n, n)
size_2 = math.pow(size, 1 / 2)
power_of_2 = size_2 == int(size_2)

if not power_of_2:
    pause(comm, t=1)
    if rank == 0:
        print(f"Number of ranks = {size} is not a power of 2 of an "
              "integer number, skipping example with 2-dimensional array")
else:
    # Halo operator
    size_2 = int(size_2)
    proc_grid_shape = (size_2, size_2)  # number of partitions over each axis

    halo = 1 if size > 1 else 0  # for Sphinx-gallery as it runs with 1 rank
    halo_op = MPIHalo(
        dims=dims,
        halo=halo,
        proc_grid_shape=proc_grid_shape,
        comm=comm
    )

    # Global array
    x = np.arange(np.prod(dims)).astype(np.float64).reshape(dims)

    # Local array
    x_slice = halo_block_split(dims, comm, proc_grid_shape)
    x_local = x[x_slice]
    x_local_shape = x_local.shape
    xhalo_local_shape, lefts, rights = \
        local_extent_from_slice(x_local_shape, x_slice, halo)
    xhalo_local_size = np.prod(xhalo_local_shape)

    # Distributed array
    x_dist = pylops_mpi.DistributedArray(
        global_shape=np.prod(dims),
        local_shapes=comm.allgather(np.prod(x_local_shape)),
        base_comm=comm,
        partition=pylops_mpi.Partition.SCATTER)
    x_dist.local_array[:] = x_local.flatten()

    # Apply halo
    x_dist_halo = halo_op @ x_dist

    if rank == 0:
        print('2D Halo with halo=1')
    pause(comm, t=1)
    print(f"Rank {rank} - shape before/after haloing: {x_local_shape}"
        f"/{xhalo_local_shape}")

    # Diagonal operator acting also on the halo, then halo is removed
    DOp = pylops.Diagonal(2 * np.ones(xhalo_local_size))
    DOp_dist = pylops_mpi.MPIBlockDiag([DOp, ])

    Op_dist = halo_op.H @ DOp_dist @ halo_op
    y_dist = Op_dist @ x_dist

    assert np.allclose(2 * x_dist.local_array, y_dist.local_array)

2D Halo with halo=1
Rank 0 - shape before/after haloing: (64, 64)/(64, 64)

Next, we turn our attention back to the first derivative; this time, since we assume that the 2-dimensional array is chunked over both axes, we will see that we can leverage the halo to compute the derivative over either of the axes

if power_of_2:
    halo_op = MPIHalo(
        dims=dims,
        halo=halo,
        proc_grid_shape=proc_grid_shape,
        comm=comm
    )

    for axis in [0, 1]:
        DOp = pylops.FirstDerivative(dims=xhalo_local_shape, axis=axis)
        DOp_dist = pylops_mpi.MPIBlockDiag([DOp, ])

        Op_dist = halo_op.H @ DOp_dist @ halo_op
        y_dist = Op_dist @ x_dist

        DOp1 = pylops.FirstDerivative(dims=dims, axis=axis)
        y = DOp1 @ x

        core_slices = tuple(slice(left, None if right == 0 else -right)
                            for left, right in zip(lefts, rights))

        # Check that derivative on entire 2d object is the same as the one on blocks with halo
        assert np.allclose(y[x_slice][core_slices],
                           y_dist.local_array.reshape(x_local_shape)[core_slices])

And we repeat the same with a 3-dimensional array

# Input and halo partition
dims = (n, n, n)
size_3 = math.pow(size, 1 / 3)
power_of_3 = size_3 == int(size_3)

if not power_of_3:
    pause(comm, t=1)
    if rank == 0:
        print(f"Number of ranks = {size} is not a power of 3 of an "
              "integer number, skipping example with 3-dimensional array")
else:
    # Halo operator
    size_3 = int(size_3)
    proc_grid_shape = (size_3, size_3, size_3)  # number of partitions over each axis

    halo = 1
    halo_op = MPIHalo(
        dims=dims,
        halo=halo,
        proc_grid_shape=proc_grid_shape,
        comm=comm
    )

    # Global array
    x = np.arange(np.prod(dims)).astype(np.float64).reshape(dims)

    # Local array
    x_slice = halo_block_split(dims, comm, proc_grid_shape)
    x_local = x[x_slice]
    x_local_shape = x_local.shape
    xhalo_local_shape, lefts, rights = local_extent_from_slice(x_local_shape, x_slice, halo)
    xhalo_local_size = np.prod(xhalo_local_shape)

    if rank == 0:
        print('3D Halo with halo=1')
    pause(comm, t=1)
    print(f"Rank {rank} - shape before/after haloing: {x_local_shape}"
        f"/{xhalo_local_shape}")

    # Distributed array
    x_dist = pylops_mpi.DistributedArray(
        global_shape=np.prod(dims),
        local_shapes=comm.allgather(np.prod(x_local_shape)),
        base_comm=comm,
        partition=pylops_mpi.Partition.SCATTER)
    x_dist.local_array[:] = x_local.flatten()

    for axis in [0, 1, 2]:
        DOp = pylops.FirstDerivative(dims=xhalo_local_shape, axis=axis)
        DOp_dist = pylops_mpi.MPIBlockDiag([DOp, ])

        Op_dist = halo_op.H @ DOp_dist @ halo_op
        y_dist = Op_dist @ x_dist

        DOp1 = pylops.FirstDerivative(dims=dims, axis=axis)
        y = DOp1 @ x

        core_slices = tuple(slice(left, None if right == 0 else -right)
                            for left, right in zip(lefts, rights))

        # Check that derivative on entire 2d object is the same as the one on blocks with halo
        assert np.allclose(y[x_slice][core_slices],
                           y_dist.local_array.reshape(x_local_shape)[core_slices])

3D Halo with halo=1
Rank 0 - shape before/after haloing: (64, 64, 64)/(64, 64, 64)

Next, we move to something more interesting. We will use the pylops_mpi.basicoperators.MPIHalo operator to create a distributed non-stationary convolutional operator acting on 1-dimensional array. This will be ultimately equivalent to PyLops’ pylops.signalprocessing.NonStationaryConvolve1D, however both the input array and the filters will be distibuted. What makes this operator interesting is that we need to handle convolutions at the edges between different ranks and to do that we will halo the input array of a number of samples equal to the distance between two filters and we will also borrow the filtering from the next/previous rank.

# Input signal operator
nlocal = 64
nfilters_local = 2
n = nlocal * size
proc_grid_shape = (size, )

# Filters
ntw = 16
dt = 0.004
tw = np.arange(ntw) * dt
fs = np.arange(nfilters_local * size) * 8 + 20
wavs = np.stack([ricker(tw, f0=f)[0] for f in fs])

# Filters centers (selected such that they are symmetric on either
# side of the edges of the distributed array between ranks)
n_between_h = nlocal // nfilters_local
ih = nlocal // (2 * nfilters_local) + \
    np.arange(0, nlocal * size, n_between_h)

pause(comm, t=1)
if rank == 0:
    print(f"Filters centers: {ih}")

# Input signal
t = np.arange(n) * dt
x = np.zeros(n, dtype=np.float64)
x[ih] = 1.0

# Halo operator
halo = n_between_h if size > 1 else 0  # for Sphinx-gallery as it runs with 1 rank
halo_op = MPIHalo(
    dims=(n, ),
    halo=halo,
    proc_grid_shape=proc_grid_shape,
    comm=comm
)

# Distributed array
x_dist = pylops_mpi.DistributedArray(
    global_shape=n,
    base_comm=comm,
    partition=pylops_mpi.Partition.SCATTER)
x_slice = halo_block_split((n, ), comm, proc_grid_shape)
x_local = x[x_slice]
x_dist.local_array[:] = x_local

x_local_shape = x_local.shape
xhalo_local_shape, lefts, rights = \
    local_extent_from_slice(x_local_shape, x_slice, halo)
pause(comm, t=1)
print(f"Rank {rank} - shape before/after haloing: {x_local_shape}"
    f"/{xhalo_local_shape}")

# Create operators
if size == 1:
    # for Sphinx-gallery
    COp = pylops.signalprocessing.NonStationaryConvolve1D(
        dims=nlocal + halo, hs=wavs, ih=ih)
else:
    if rank == 0:
        # Only one extra filters on the right
        COp = pylops.signalprocessing.NonStationaryConvolve1D(
            dims=nlocal + halo, hs=wavs[:nfilters_local + 1],
            ih=ih[:nfilters_local + 1]
        )
    elif rank == size - 1:
        # Only one extra filters on the left
        COp = pylops.signalprocessing.NonStationaryConvolve1D(
            dims=nlocal + halo, hs=wavs[-nfilters_local - 1:],
            ih=ih[-nfilters_local - 1:] - x_slice[0].start + halo
        )
    else:
        # Two extra filters on either side
        COp = pylops.signalprocessing.NonStationaryConvolve1D(
            dims=nlocal + 2 * halo, hs=wavs[nfilters_local * rank - 1:nfilters_local * (rank + 1) + 1],
            ih=ih[nfilters_local * rank - 1:nfilters_local * (rank + 1) + 1] - x_slice[0].start + halo
        )

# Create and apply total operator
COp_dist = pylops_mpi.MPIBlockDiag([COp, ])
Op_dist = halo_op.H @ COp_dist @ halo_op

y_dist = Op_dist @ x_dist
xadj_dist = Op_dist.H @ y_dist

y_dist = y_dist.asarray()
xadj_dist = xadj_dist.asarray()

# Create and apply benchmark serial operator
COp = pylops.signalprocessing.NonStationaryConvolve1D(
    dims=n, hs=wavs, ih=ih
)

y = COp @ x
xadj = COp.H @ y

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/pylops/utils/wavelets.py:196: UserWarning: One sample removed from time axis...
  t = _tcrop(t)
Filters centers: [16 48]
Rank 0 - shape before/after haloing: (64,)/(64,)

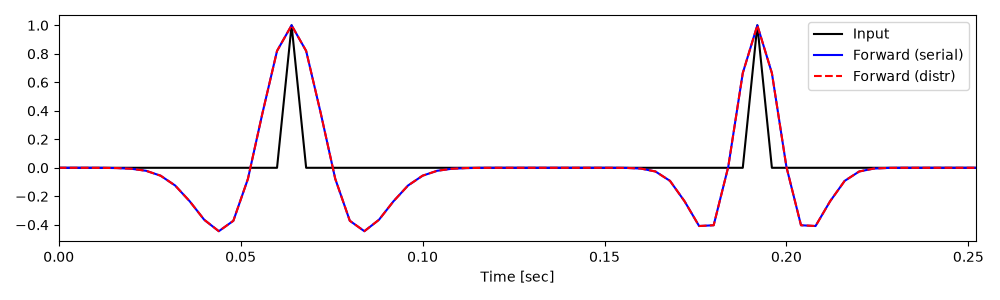

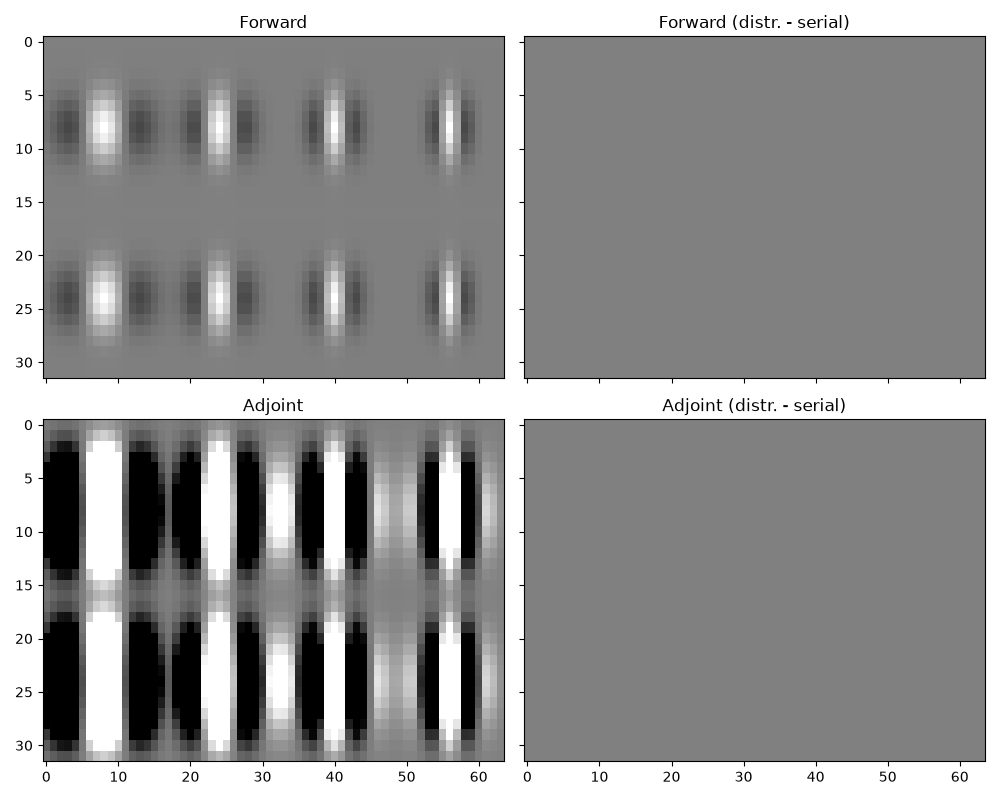

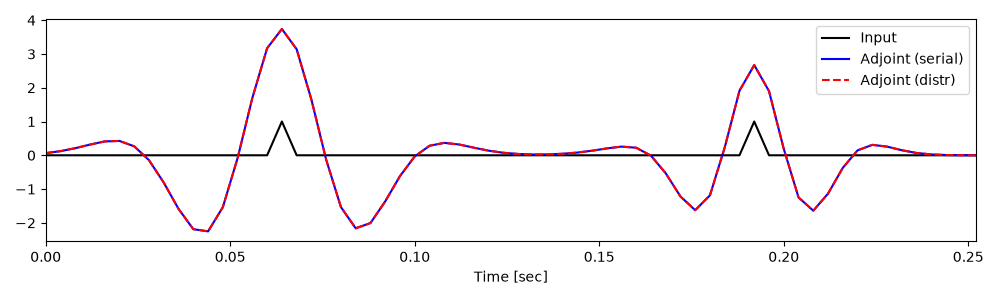

Let’s display the results

if rank == 0:
    plt.figure(figsize=(10, 3))
    plt.plot(t, x, "k", label="Input")
    plt.plot(t, y, "b", label="Forward (serial)")
    plt.plot(t, y_dist, "--r", label="Forward (distr)")
    plt.xlabel("Time [sec]")
    plt.xlim(0, t[-1])
    plt.legend()
    plt.tight_layout()

    plt.figure(figsize=(10, 3))
    plt.plot(t, x, "k", label="Input")
    plt.plot(t, xadj, "b", label="Adjoint (serial)")
    plt.plot(t, xadj_dist, "--r", label="Adjoint (distr)")
    plt.xlabel("Time [sec]")
    plt.xlim(0, t[-1])
    plt.legend()
    plt.tight_layout()

•
•

We repeat the same exercise for a 2-dimensional array using PyLops’ pylops.signalprocessing.NonStationaryConvolve2D; here the input array and the filters are distibuted along the slowest axis.

# Input signal operator
nlocal = (32, 64)
nfilters_local = (2, 4)
proc_grid_shape = (size, 1)
n = (nlocal[0] * proc_grid_shape[0],
     nlocal[1] * proc_grid_shape[1])

# Filters
ntw = 15
dt = 0.004
tw = np.arange(ntw) * dt
fs = np.arange(nfilters_local[1] * proc_grid_shape[1]) * 8 + 20

wavy = gaussian(ntw, 2.0)
wavs = np.zeros((nfilters_local[0] * proc_grid_shape[0],
                 nfilters_local[1] * proc_grid_shape[1],
                 ntw, ntw * 2 - 1))
for ify in range(nfilters_local[0] * proc_grid_shape[0]):
    for ifx in range(nfilters_local[1] * proc_grid_shape[1]):
        wavx = ricker(tw, f0=fs[ifx])[0]
        wav = np.outer(wavy, wavx[None].T)
        wavs[ify, ifx] = wav

# Filters centers (selected such that they are symmetric on either
# side of the edges of the distributed array between ranks)
n_between_hy = nlocal[0] // nfilters_local[0]
n_between_hx = nlocal[1] // nfilters_local[1]

ihy = nlocal[0] // (2 * nfilters_local[0]) + np.arange(0, nlocal[0] * proc_grid_shape[0], n_between_hy)
ihx = nlocal[1] // (2 * nfilters_local[1]) + np.arange(0, nlocal[1] * proc_grid_shape[1], n_between_hx)

pause(comm, t=1)
if rank == 0:
    print(f"Filters centers - 1st axis: {ihy}, 2nd axis: {ihx}")

# Input signal
x = np.zeros(n, dtype=np.float64)
for ih in ihy:
    x[ih, ihx] = 1.0

# Halo operator
halo = (n_between_hy, 0) if size > 1 else (0, 0)  # for Sphinx-gallery as it runs with 1 rank
halo_op = MPIHalo(
    dims=n,
    halo=n_between_hy,  # STRANGE!
    proc_grid_shape=proc_grid_shape,
    comm=comm
)

# Distributed array
x_dist = pylops_mpi.DistributedArray(
    global_shape=np.prod(n),
    base_comm=comm,
    partition=pylops_mpi.Partition.SCATTER)
x_slice = halo_block_split(n, comm, proc_grid_shape)
x_local = x[x_slice]
x_dist.local_array[:] = x_local.ravel()

# Apply halo
x_dist_halo = halo_op @ x_dist

x_local_shape = x_local.shape
xhalo_local_shape, lefts, rights = \
    local_extent_from_slice(x_local_shape, x_slice, halo)
xhalo_local_size = np.prod(xhalo_local_shape)
pause(comm, t=1)
print(f"Rank {rank} - shape before/after haloing: {x_local_shape}"
      f"/{xhalo_local_shape}")

# Create operators
if size == 1:
    # for Sphinx-gallery
    COp = pylops.signalprocessing.NonStationaryConvolve2D(
        dims=(nlocal[0] + halo[0], n[1]), hs=wavs, ihx=ihy, ihz=ihx)
else:
    if rank == 0:
        COp = pylops.signalprocessing.NonStationaryConvolve2D(
            dims=(nlocal[0] + halo[0], n[1]),
            hs=wavs[:nfilters_local[0] + 1],
            ihx=ihy[:nfilters_local[0] + 1],
            ihz=ihx
        )
    elif rank == size - 1:
        COp = pylops.signalprocessing.NonStationaryConvolve2D(
            dims=(nlocal[0] + halo[0], n[1]),
            hs=wavs[-nfilters_local[0] - 1:],
            ihx=ihy[-nfilters_local[0] - 1:] - x_slice[0].start + halo[0],
            ihz=ihx
        )
    else:
        COp = pylops.signalprocessing.NonStationaryConvolve2D(
            dims=(nlocal[0] + 2 * halo[0], n[1]),
            hs=wavs[nfilters_local[0] * rank - 1:nfilters_local[0] * (rank + 1) + 1],
            ihx=ihy[nfilters_local[0] * rank - 1:nfilters_local[0] * (rank + 1) + 1] - x_slice[0].start + halo[0],
            ihz=ihx
        )

# Create and apply total operator
COp_dist = pylops_mpi.MPIBlockDiag([COp, ])
Op_dist = halo_op.H @ COp_dist @ halo_op

y_dist = Op_dist @ x_dist
xadj_dist = Op_dist.H @ y_dist

y_dist = y_dist.asarray().reshape(n)
xadj_dist = xadj_dist.asarray().reshape(n)

# Create and apply benchmark serial operator
COp = pylops.signalprocessing.NonStationaryConvolve2D(
    dims=n, hs=wavs, ihx=ihy, ihz=ihx
)

y = COp @ x
xadj = COp.H @ y

Filters centers - 1st axis: [ 8 24], 2nd axis: [ 8 24 40 56]
Rank 0 - shape before/after haloing: (32, 64)/(32, 64)

Let’s display the results

if rank == 0:
    fig, axs = plt.subplots(2, 2, sharex=True, sharey=True, figsize=(10, 8))
    axs[0, 0].imshow(y_dist, cmap="gray", vmin=-1, vmax=1)
    axs[0, 0].set_title("Forward")
    axs[0, 1].imshow(y_dist - y, cmap="gray", vmin=-.1, vmax=.1)
    axs[0, 1].set_title("Forward (distr. - serial)")
    axs[1, 0].imshow(xadj_dist, cmap="gray", vmin=-1, vmax=1)
    axs[1, 0].set_title("Adjoint")
    axs[1, 1].imshow(xadj_dist - xadj, cmap="gray", vmin=-.1, vmax=.1)
    axs[1, 1].set_title("Adjoint (distr. - serial)")
    for ax in axs.flatten():
        ax.axis("tight")
    fig.tight_layout()
